Applications & test purpose:

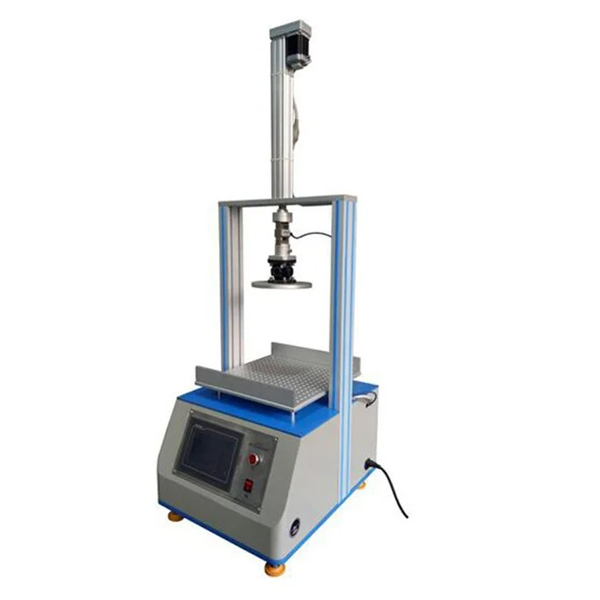

Foam Compression Recover Time Tester is used to determine the recovery time of the slow recovery (viscoelastic) foams. ASTM D3574 is a commonly used standard for tests involving flexible cellular foam materials. Test M specifies a method for measuring the recovery time of slow recovery (viscoelastic) foams, like memory foam. It is an important test in the mattress industry.
Standard Features:
Control and display |
PLC+LCD |
Sensor |
Load cell |
Capacity |
200KG |
Unit |
N |
Up plate |
Diameter 200mm, bottom fillet R1mm |
Low plate |
400×400mm, holes diameter 6mm, space 20mm |
Test Sample Size |
380*380*100mm |
Test speed |
1000 + 100 mm/min |
Motor |
Servo motor |
Driver |
Electric actuator |
Power |
Single phase, 220V, 50Hz |
Weight |
160KG |
